LHI Robocat 270mm 4 Axis Carbon Fiber Quadcopter Frame FLIP32 10DOF 2204 Motor 12A ESC props RC01

24 sold

$200.76

1000 in stock (can be backordered)

Brand Name:LHI Use:Vehicles & Remote Control Toys For Vehicle Type:Airplanes Tool Supplies:Assembled class Material:Composite Material Remote Control Peripherals/Devices:Remote Controller RC Parts & Accs:Antennas Upgrade Parts/Accessories:Frame Model Number:ROBOCAT Four-wheel Drive Attributes:Assemblage

  • Description
  • Additional Information
  • Shipping Methods
  • Reviews (0)
  • Robocat 270mm 4 Axis Carbon Fiber Quadcopter Frame FLIP32 10DOF 2204 Motor 12A ESC props  AT9

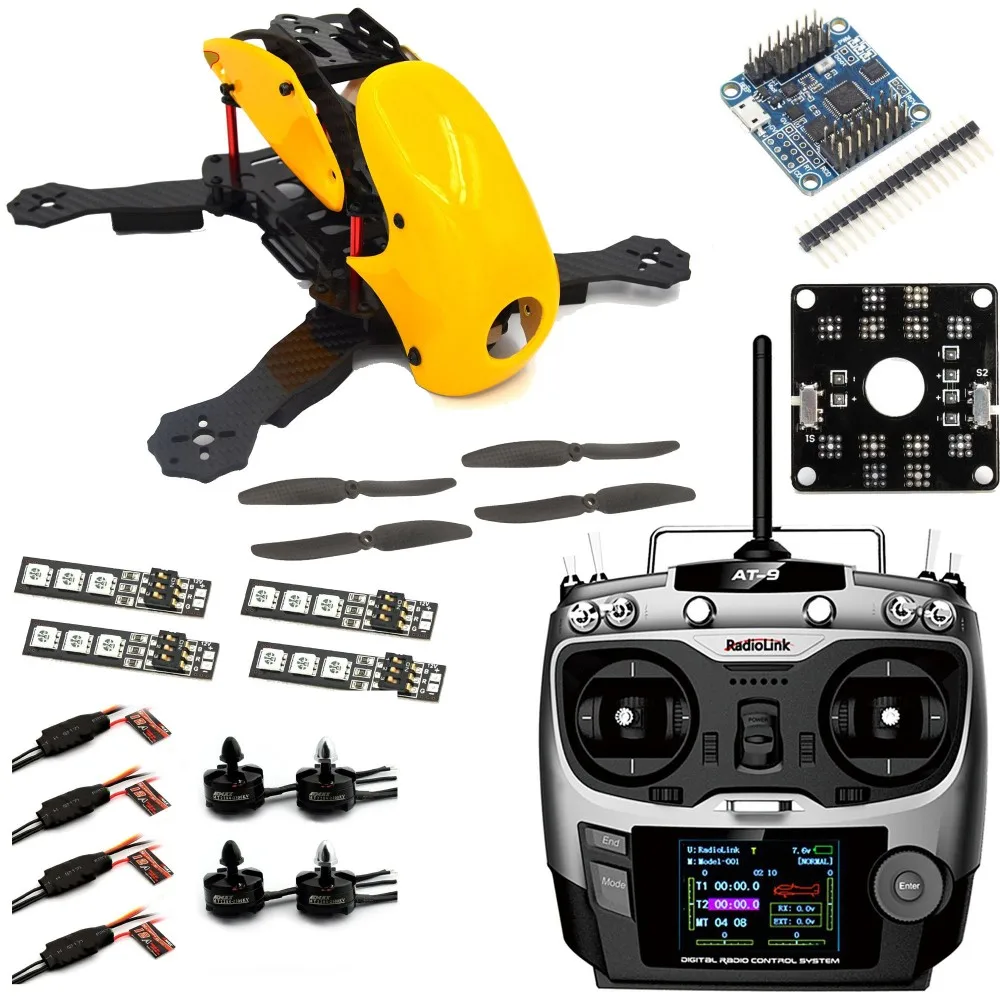

    Package included:
    - Robocat cabron fiber frame kit  x 1 ( Yellow   cover )
    - FLIP32 10DOF Flight Control Board x1set
    - 2204 2300kv Brushless Motor x 4 ( cw 2PCS + ccw 2PCS )
    - EMAX Simonk 12A ESC x 4
    - ESC Connection Board x 1
    - RGB LED lights board x 4
    - 6030 Carbon Fiber Propeller x 2 Pair
    - AT9  2.4GHz 9 Channel Transmitter Radio & Receiver X1set



    Note:

    Please be well noted that this product is not assembled.

    Robocat 270mm 4-Axis Carbon Fiber Mini Quadcopter

    Specification:

    - Wheelbase: 270mm
    - Material: 100% Carbon fiber
    - Removable hood make from shock-absorbing PC materials
    - Flying weight: 410~430 (Battery excluded)
    - Model net weight: 190g
    - Hood color: Black
    - 1.5mm thick fuselage & 3mm thick arms
    - No assembled,just kit
    2204 2300KV Motor:

    Features:
    - Light weight design
    - Longer duration of flight
    - Low CG Design, decreasing vibration when motor runs
    - Using Japanese NMB ball bearing, Japanese Kawasaki stator, Ndfeb with strong magnetic and high temperature resistance, decreasing heat generation during pperation, increasing efficiency.
    - CW and CCW Propeller adapters, holding the propellers tight.
    - Designed for mini multicopters, better flight performance

    Specification:
    - KV: 2300
    - Max Trust: 440g
    - No. of cell: 2-3S
    - Framework: 12N14P
    - Propeller: 5" - 6"
    - Length: 32.2mm
    - Shaft: 3mm
    - Diameter: 27.9mm
    - Weight: 25g

    EMAX SimonK 12A Brushless ESC Speed Controller:

    Specifications:
    - Constant Current: 12A
    - Input Voltage: 1-3 cell Lipoly
    - BEC: Yes (linear) [Remove middle wire to dissable]
    - BEC Output: 5V/1A
    - PWM: 8 KHz
    - Max RPM: 240,000rpm for 2 Pole Brushless Motor
    - Size: 22*17*7
    - Weight: 8g

    FLIP 10dof


    Features:

    Size: 36mm x 36mm
    Version: 10dof

    -3-axis MEMS gyro+accelerometer(MPU6050)
    -3-axis magenetometer (HMC5883L)*
    -Pressure sensor (MS5611)*
    -Flexible motor output,support various airframe types
    -Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal(Default is

    Quad-X)
    -Up to 8 ch RC input-supports standrad receivers

    (PWM),PPM Sum receiver(FrSky,etc),or Spektrum

    Stellite receiver
    -Battery voltage monitoring
    -Modern 32 processor running at3.3V/72MHz

    (STM32F103CB)
    -Onboard MicroUSB for setup and configuration
    -MultiWii-based configuration software for easy set

    Dear friends.if you want us to assemble the ARF kit for you,please add $15 for labor fees.Please contact your Customer  service  Ada. Or you can  pay directly with this linkhttps://es.aliexpress.com/store/product/Welcom-to-design-your-special-Gift/211266_32772691485.html
